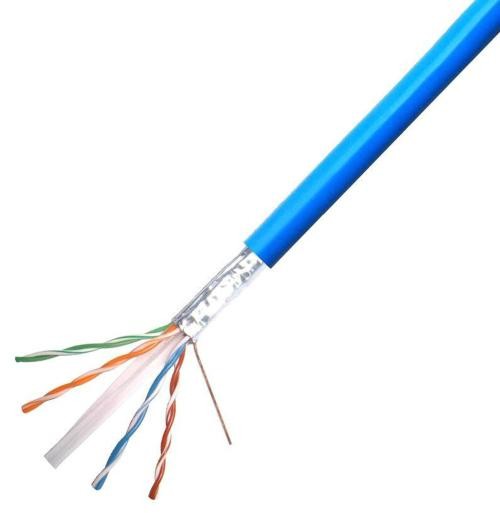

E308860 (UL) TYPE bared copper stranded CM 4 pair 26AWG 30V 80℃ PVC jacket CAT5E SFTPcable
Product Description
| ITEM | 4P×26AWG+MAB |
| CONDUCTOR | Material | Bare Copper Stranded |
| Size | 7/0.16±0.008mm |
| O.D.(Ref) | 0.48mm |
| INSULATION | Material | HDPE |
| Min.average thickness | 0.18mm |
| Min.thickness at any point | 0.15mm |
| O.D. | 0.95±0.10mm |
| TWISTED | O.D.(Ref) | 1.90mm |
| CABLING | Assembly | 4P×26AWG+MAB |
| Material | Mylar,≥25% |
| Material | AL-mylar,≥25% |
| Braid | Material | Tinned Copper |
| Size | 0.1mm,≥80% |
| JACKET | Material | PVC |
| Min.average thickness | 0.69mm |
| Min.thickness at any point | 0.64mm |
| O.D. | 6.00±0.30mm |
Conductor Bared copper stranded
Cross section 4P×26AWG+MAB
Construction 7/0.16±0.008mm
Elongation ≥100%
Strand Dia.(Ref.) 0.48mm
Aged condition 113±1℃×168h
Insulation PVC
Nom.Thickness 0.18mm
Min.Thickness 0.15mm
Insulation Dia. 1.80±0.10mm
Insulation: 1.white/blue,blue, 2.white/orange,orange, 3.white/green , green, 4.white/brown,brown
Jacket PVC
Reference standard:(UL) TYPE CM
Nom.Thickness 0.69mm
Min.Thickness 0.64mm
Outer Dia. 6.00±0.30mm
Colour per request
UL758-E258652-20060111A-CertificateofCompliance(2)...
| ELECTRICAL CHARACTERISTICS |
| Rated voltage:30V |
| Rated temperature:80℃ |
| Max. DC conductor resistance(20℃):140Ω/km |
| Voltage withstand test:AC 0.5kV/1min |
| Impedance : 100±15Ω |
