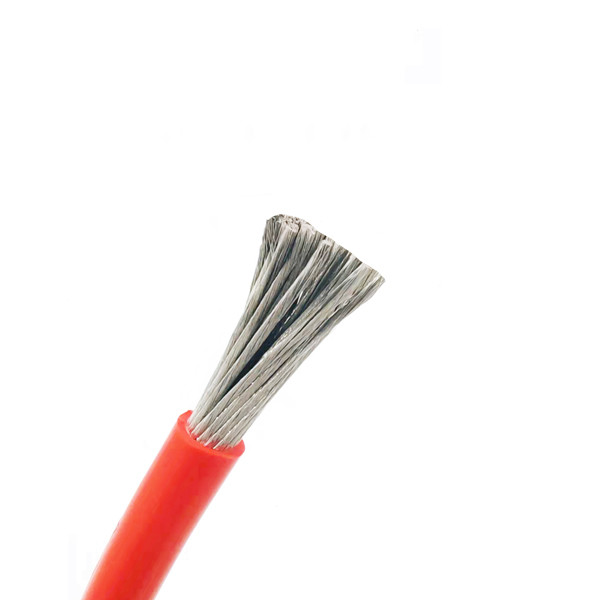

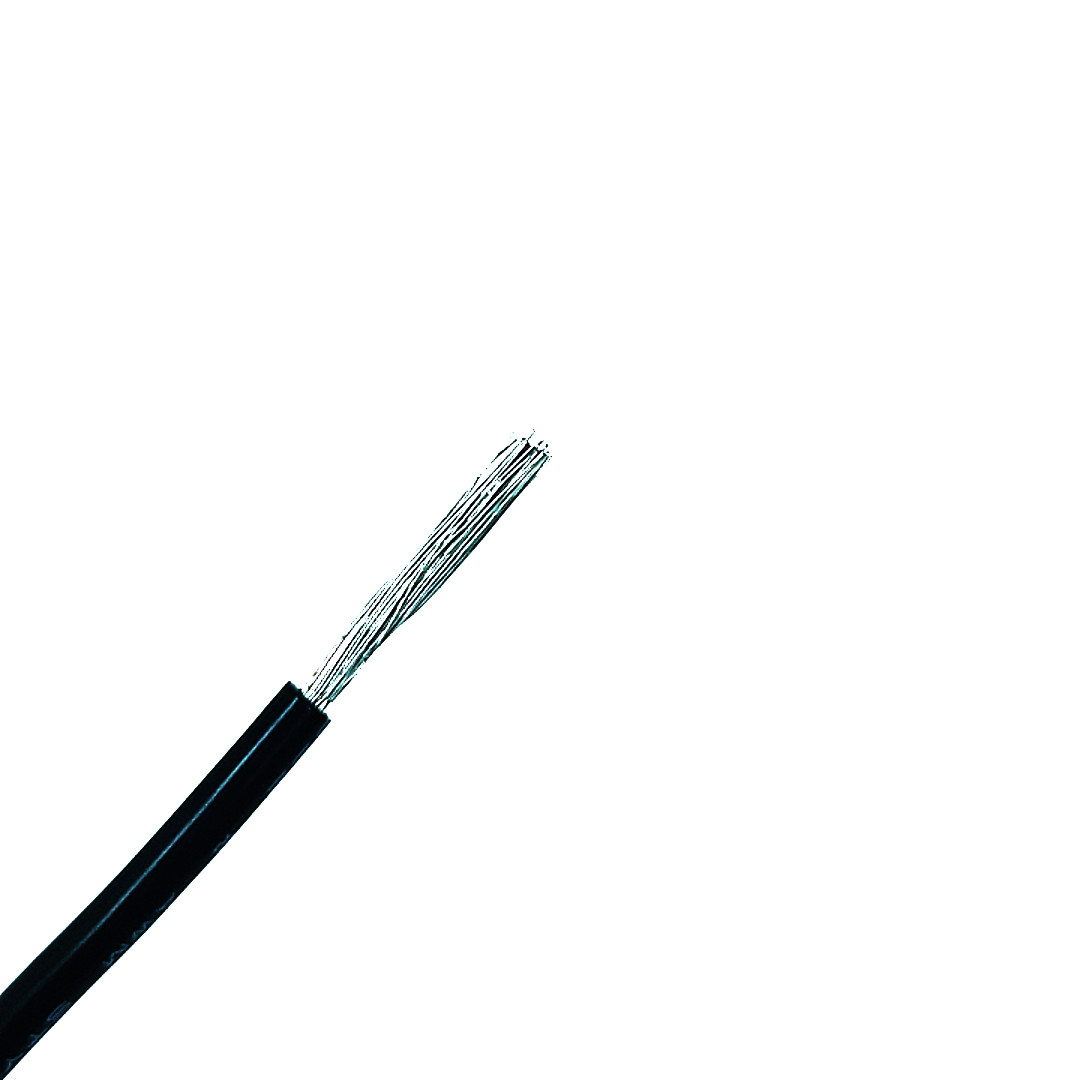

8 AWG XLPE OD 6.8 mm high Voltage Tinned copper single Cable 125℃ 3000V
Product Description
Application: This specification covers FEP insulated cable for intenal wiring of electronic equipment, such as Note-PC,PDA, Mobile phone.
Product character:
1) Nominal voltage: 3000V
2) Rated temperature:125℃
3) Conductor: Tinned copper stranded
4) Insulator:XLPE
5) Operating temperature : 125ºC
6) Colours: Insualtion:per request
7) Standard: UL3817
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| | |
| Conductor | Tinned copper stranded |
| Cross section | 10mm2 |
| Construction | 320/0.20mm |
| Strand Dia.(Max) | 4.50mm |
| Insulation | XLPE |
| Nom.Thickness | 1.00mm |
| Min.Thickness | 0.80mm |
| Insulation Dia. | 6.80±0.30mm |
| Insulation colour | Per request |
Conductor : stranded, tinned or bare copper
Construction
Insulation:XLPE
Insulation:per request
Jacket: XLPE
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
RoHS,REACH Compliant,
Technical data
Rated voltage:3000V
Rated Temperature: 125℃
Flame: VW1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance |
| | |
| Rated Temperature | 125℃ |
| Voltage rating | 3000V |
| Max.conductor DC resistance(20℃) | 2.230Ω/km |
| Dielectric Strength AC | 7.0 KV/1min |
