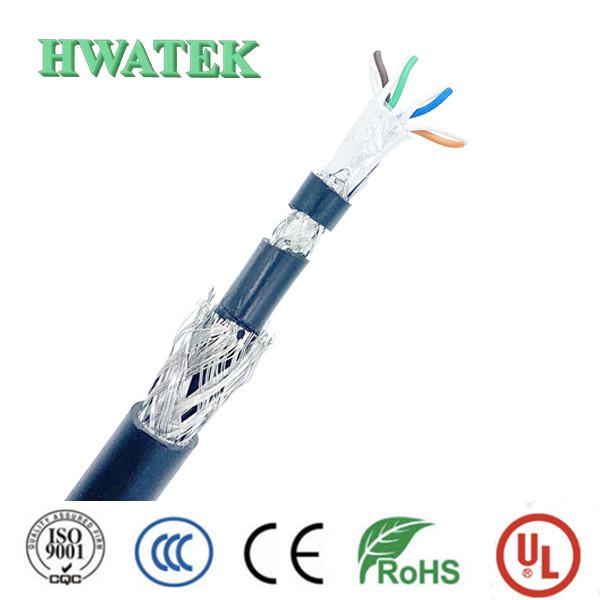

NOUL 10C×14AWG+11×(1P×20AWG+DAM)+DAW UV resistant outdoor application customized Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT1
Tensile strength:≥10.3 MPa Elongation:≥250%
Aged condition:121±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥70%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| Conductor | Bare copper stranded |
| Cross section | A1~A10:10C×14AWG | B1~B11:11P×20AWG |
| Construction | 19/0.36mm | 19/0.20mm |
| Strand Dia.(Ref.) | 1.80mm | 1.00mm |
| Insulation | XLPE | XLPE |
| Nom.Thickness | 0.76mm | 0.76mm |
| Min.Thickness | 0.69mm | 0.69mm |
| Insulation Dia. | 3.60±0.15mm | 2.60±0.15mm |
| Insulation colour | A1~A6.red with number of 1~6
A7~A10.black with number of 1~4 | B1~B11.white with number of 1~11
B1~B11.black with number of 1~11
Each pair is black and white |
| Twited(Nom.) | / | 5.20mm |
| Drain | / | Tinned Copper,19/0.20mm |
| Material | / | Al-mylar(facing in) |
| Material | / | Mylar |
| Filler | Optional |
| Drain | Tinned Copper,19/0.20mm |
| Material | Al-mylar(facing in) |
| Material | Non-woven |
| Assembly | 10C×14AWG+11×(1P×20AWG+DAM)+DAW |
| Jacket | XLPE |
| Nom.Thickness | 2.03mm |
| Min.Thickness | 1.63mm |
| Outer Dia. | 30.00±1.00mm |
| Colour | per request |
Insulation:XLPE
Conductor : Bared copper stranded
Construction
Insulation:A1~A6.red with number of 1~6 A7~A10.black with number of 1~4
Jacket : per request
Jacket: XLPE
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: NOUL
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: '-40~90℃
Flame: FT1
Voltage withstand test:AC 3.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance |
| Rated Temperature | -40~90℃ |
| Voltage rating | 600V |
| Max.conductor DC resistance(20℃) | A:8.62Ω/km,B:34.6Ω/km |
| Dielectric Strength AC | 3.0kV/1min |
